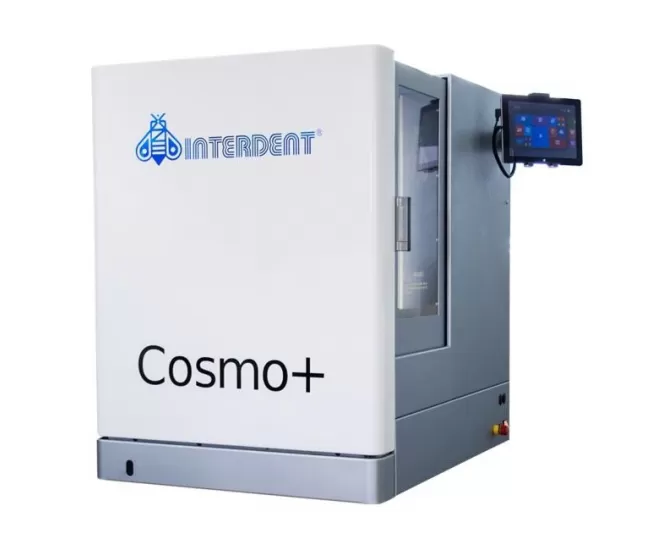

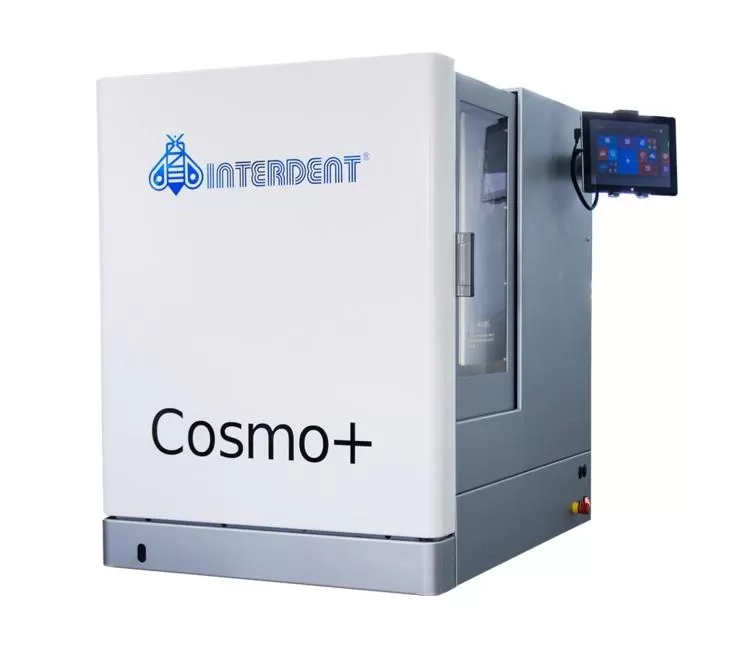

CAD/CAM milling unit CC COSMO+

Description

A compact and precise 5-axis milling unit for anyone and any material!

Due to its compact shape and high productivity, the CC COSMO+ milling unit is suitable for all laboratories seeking reliability, precision and independence with respect to materials and system openness.

It contains a holder for up to 20 drilling instruments 6mm Ø thick. For optimum results, CC COSMO+ will do a control test of the drilling instrument before each use. It enables you to mill an extremely wide array of materials.

To plan the milling process, SUM3D is used, which is one of the best dental CAM programs. The system is fully open and simple to use. CC COSMO+ has preset strategies for milling all materials.

The steering system contains a combination of electronic and industrial elements that provide quality and reliable operation. Milling units are equipped with a tablet computer with the Windows 10 operating system, a touch screen, possibility to connect to the Internet and possibility of remote servicing.

Technical data:
- Working area X, Y, Z axis: 130 x 200 x 90 mm.
- Working area A, B axis: 360°; ±30°.
- Motor speed: 300 - 60 000 rpm.
- Motor power: 2.5 kW.
- Milling options: wet or dry.
- Capacity of end mills: 20 pcs - automatic changing.
- Touch screen tablet: 11,6'' screen.
- Air pressure: min. 6 bar and 120 l/min.
- Dimensions W x H x D: 745 x 955 x 980 mm.
- Weight: 220 kg.
- Material: composite, zirconium, CoCr, Peek, PMMA, glass ceramic, hybrid ceramic, lithium disilicate, titan, wax.
