Description

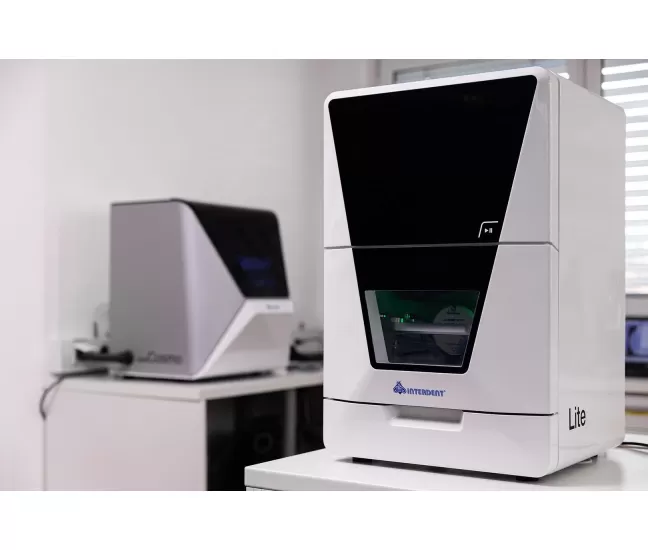

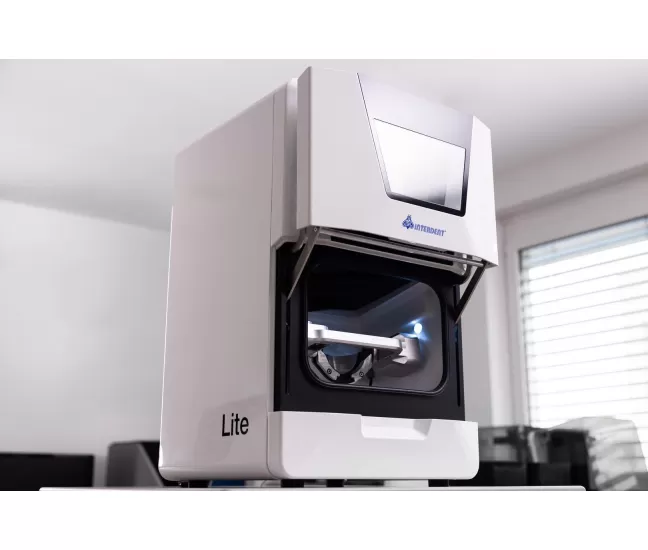

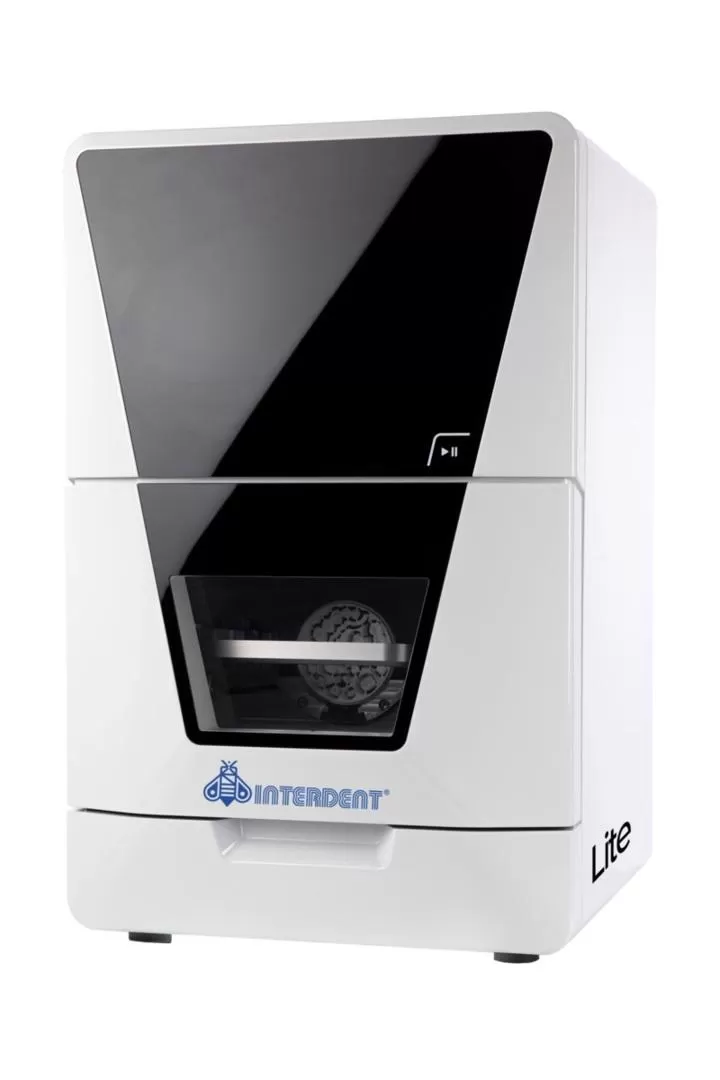

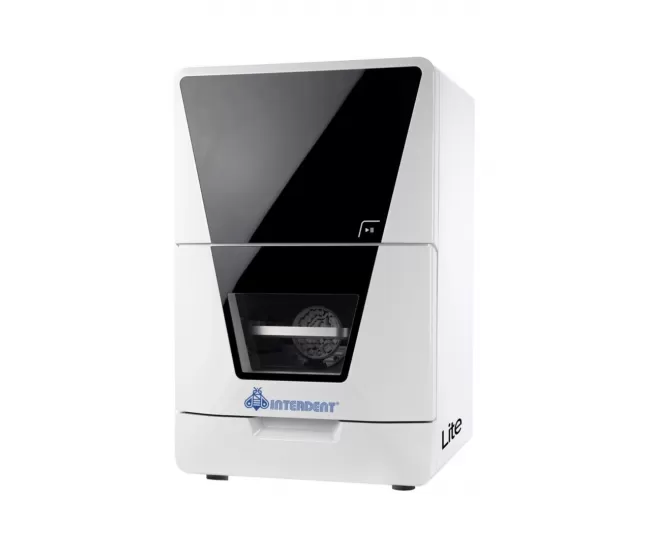

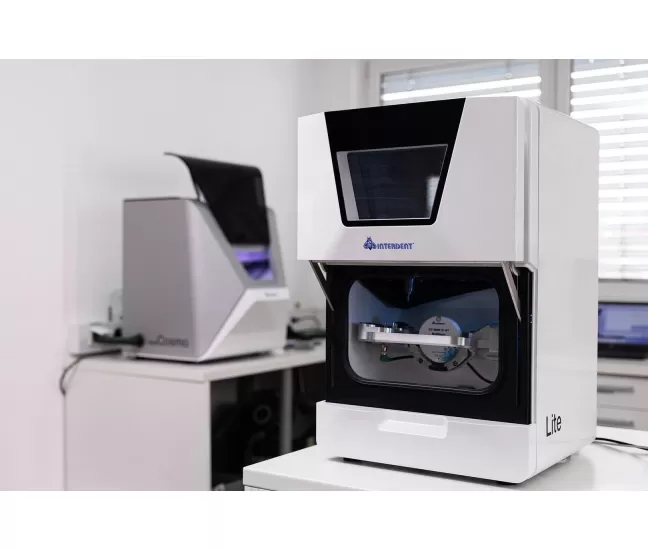

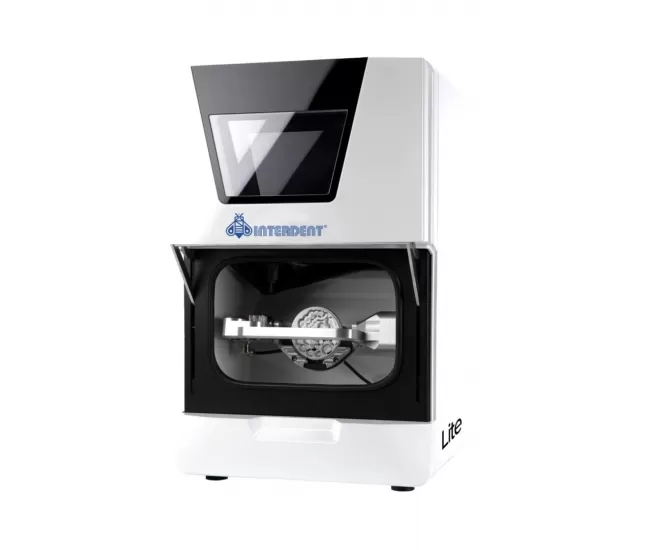

5-axis milling unit for dry milling with simple operation without the use of compressed air. It is suitable for discs or blocks of almost all materials from composites and zirconia to CoCr sintered metals.The CC Lite has a holder for up to 17 tools - 16 standard tools and an AIRTOOL. Thickness 10 – 40 mm, additional holder for blocks also available. Operation without the use of compressed air with the innovative AIRTOOL. Simple operation with the integrated Interdent dental CAM software featuring DIRECTMILL technology – no license fees payable.
Advantages:
- Mills almost all materials in a 98.5 mm disc format, holders available for 110 mm discs and blocks.
- Integrated CAM software for immediate workflow (unpack, connect and start milling!) with maximum freedom in the choice of materials and scanners.
- No compressed air needed due to innovation of the CC Lite - AIRTOOL.
- The AIRTOOL uses its turbine blades to generate an air flow with no compressor or compressed air connection, which reliably keeps the workpiece free of dust and chippings. They are removed by vacuum from a dust collector.
- Automatic tool changer for 1 disc and for up to 6 blocks of different sizes.
- Greatest indication diversity with a rotating angle of ± 35° in the 5th axis and discs up to 40 mm thick.
- C-holder for 90° machining of anterior teeth.
Technical information:
- Number of axis: 5.
- Working area A axis: 360°.
- Working area, B axis: ± 35°.
- Working areas X, Y, Z axis: precision ball screws, repetition accuracy ± 0,003 mm.
- Construction: massive aluminium cast.
- Motor speed: 60 000 rpm.
- Motor power: 800 W.
- Milling options: dry.
- Capacity of end mills: 17.
- Interface: InterdentCAM.
- Dimensions W x D x H: 472 x 484 x 734 mm.
- Weight: 43 kg.

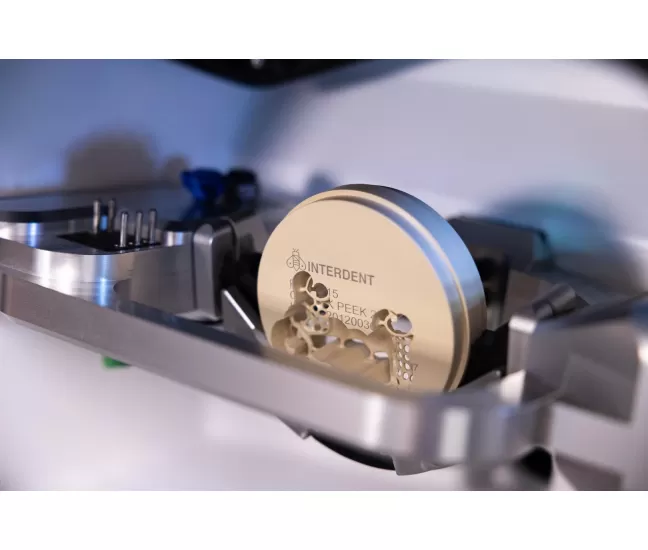

- Material: Composites, PMMA, PEEK, Wax, Zirconia, CoCr sintering metal.

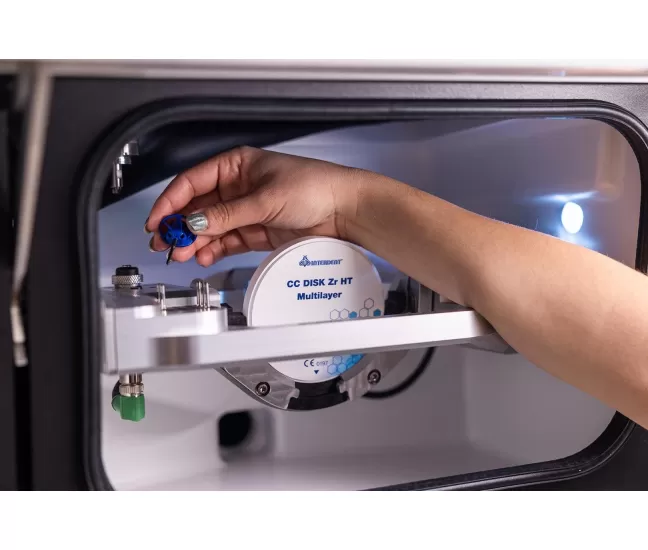

- Disc dimension: Discs, 10-40 mm, diameter Ø 98,5 mm; Blocks up to 45 x 20 mm (block holder required).
- Indications: Crowns, bridges, inlays, onlays, veneers, occlusal splints, full dentures, denture frameworks, implant bars, abutments, screw retained crowns, screw retained bridges, surgery guides, primary crowns, secondary crowns, model plates, model tooth dies.
