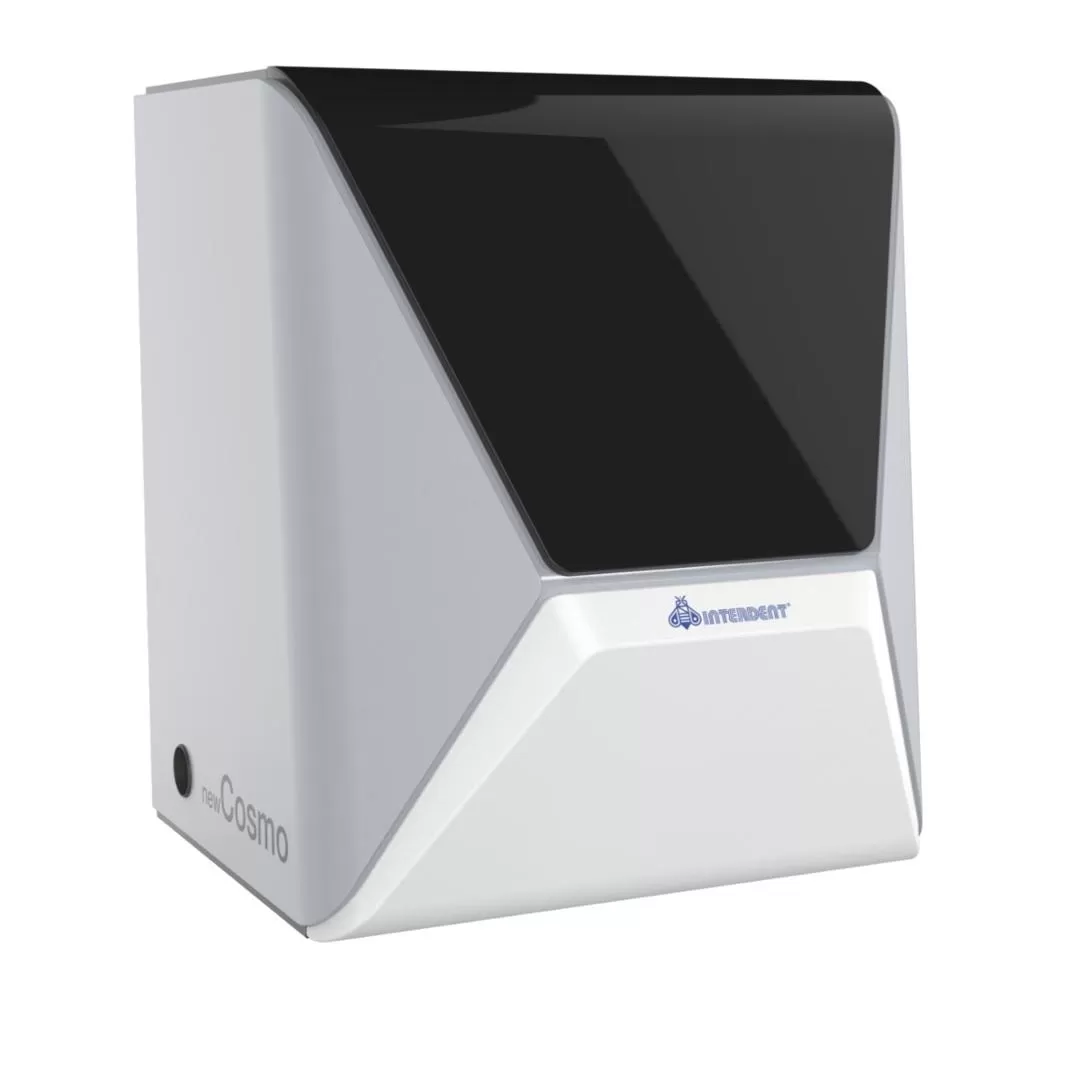

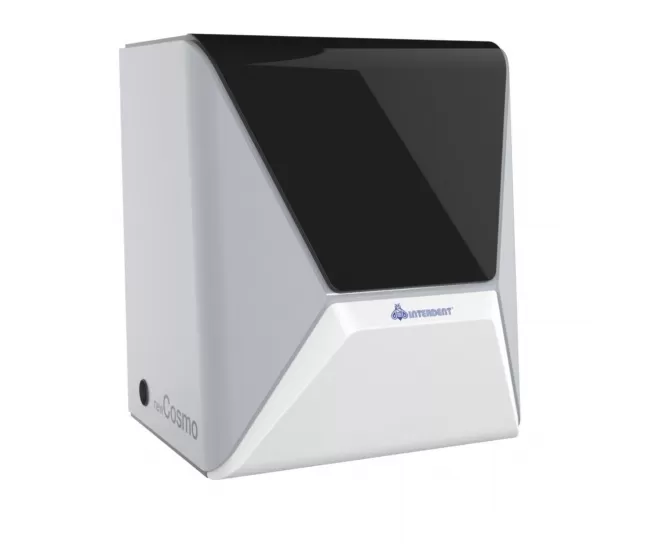

CAD/CAM milling unit CC newCOSMO

Description

Compact 5-axis milling unit for dry and wet milling with disc changer. Due to its size and the wet or dry milling options, the CC newCOSMO milling unit is suitable for laboratories producing restorations from a wide range of different materials.

The CC newCOSMO has a holder for up to 16 rotating instruments of diameter Ø 3 mm with maximum length 40 mm. It can mill smaller blocks and discs with Ø 98 mm.

Advantages:
- Coloured working chamber illumination indicates machining status.
- Webcam for remote monitoring.
- Automatic cleaning and drying - “DirectClean Technology”.
- Integrated ionizers.
- Revolutionary material loading with ?DirectDiscTechnology? for 10 discs.
- Holder for 6 blocks.
- It can mill discs Ø 98mm, max thickness 40mm or blocks max size 20 x 20 x 40 mm (W/H/L).
- Mills and grinds the toughest materials on the market including Ti and CoCr.
- Automatic changer of tools with the help of compressed air.
- Automatic verification of the mill length.
- Integrated container with cooling liquid.
- Network connection capability.

Technical data:
- Number of axis: 5.
- Working area A axis: 360°.
- Working area B axis: ± 35°.
- Motor speed: 80 000 rpn.
- Motor power: 800 W.
- Milling options: wet or dry - integrate water tank.
- Capacity of end mills: 16.
- Touch screen tablet: integrated.
- Interface: InterdentCAM.
- Air pressure: 8 bar 120 l/min.
- Dimensions W x H x D: 580 x 700 x 600 mm.
- Weight: 149 kg.
- Material: composite; zirconium; wax; CoCr; Peek; PMMA; glass ceramic; hybrid ceramic; lithium disilicate; titanium; titanium premilled abutments.
