Description

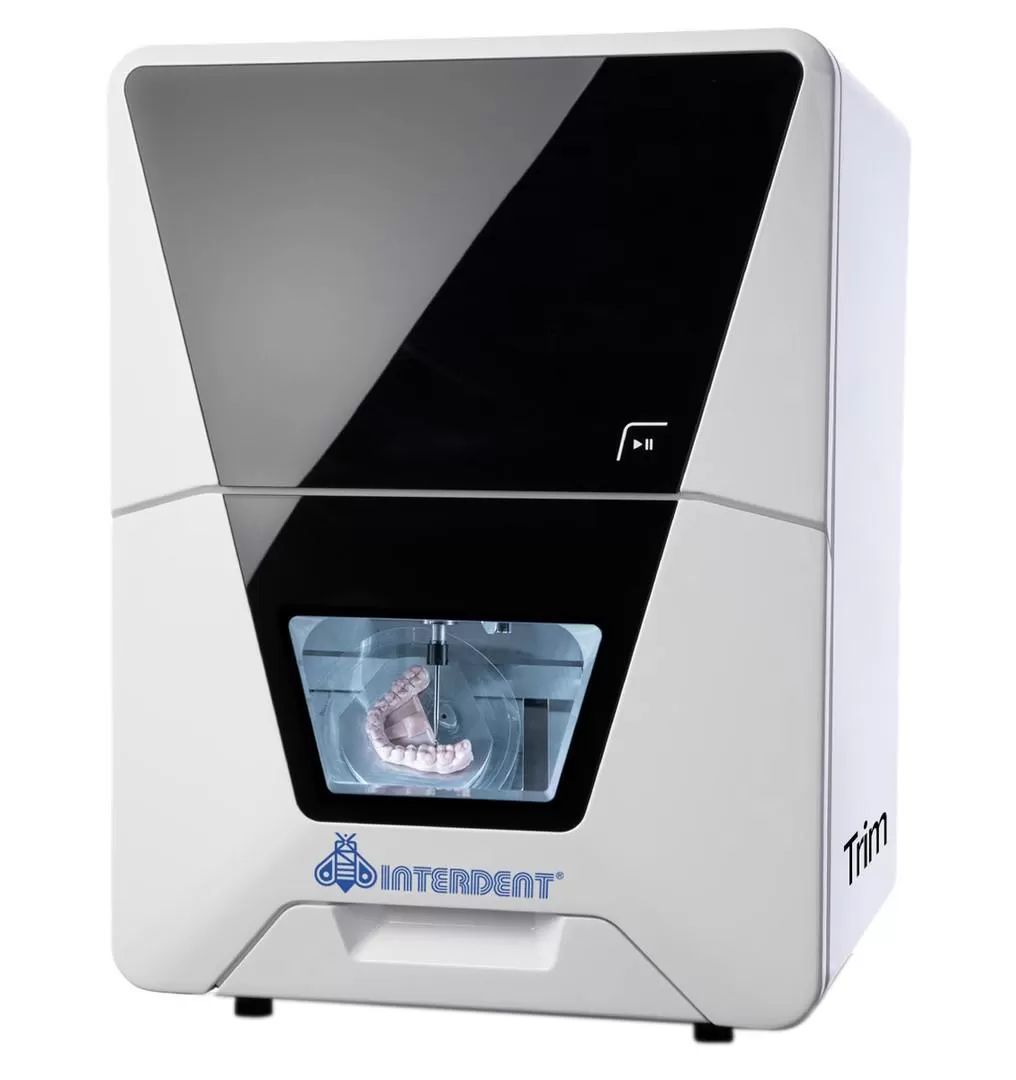

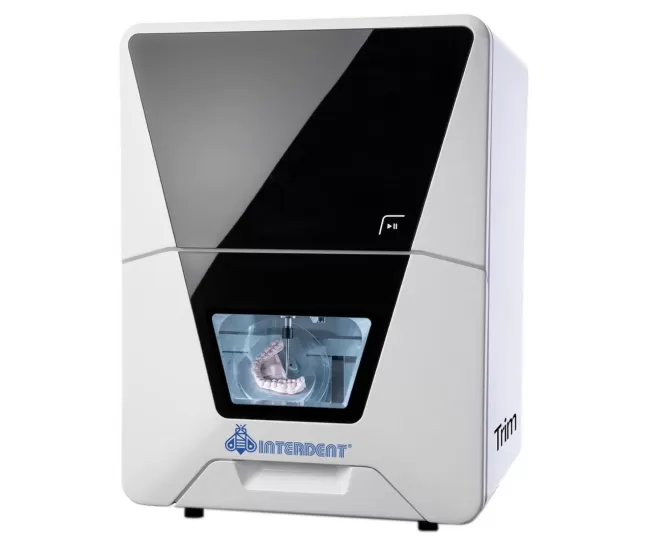

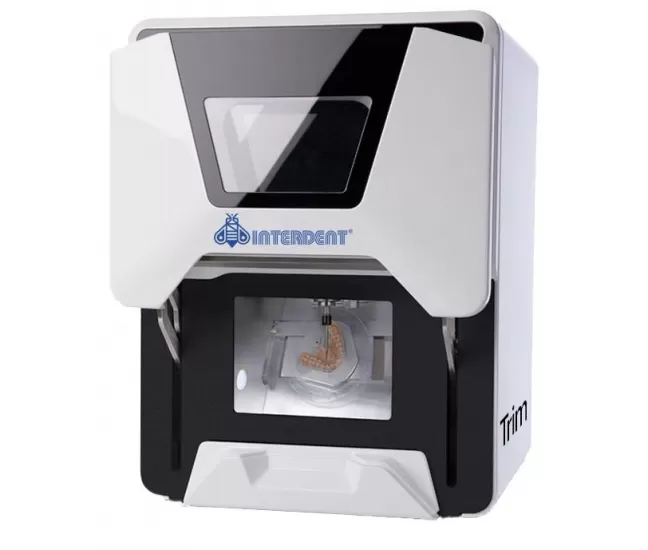

The new CC Trim enables you to automate the precision trimming of occlusal appliances. You can expect the very best results in the shortest time with no arduous reworking. The machined fabrication also ensures a consistently high quality.Meticulous attention has been paid to the details: for example, no separate extraction system is required – thanks to the practical collection tray for chips.
With a machine weight of only 25 kg and no use of compressed air, the compact CC Trim offers maximum flexibility in terms of the installation site. 100% developed and manufactured in Germany, the CC Trim impresses with its precise results and outstanding reliability.
Meant for:
- Aligners.
- Bite splints.
- Grinding splints.
- Sports mouthguards.
Technical data:
- Fields of application: dry machining.
- Materials: thermo-formed plastic foil.
- Holder systems: holder for tool-free clipping in of the aligners.
- Number of axes: 3+1.
- Rotary axis B-axis: rotation angle: 360°, infinite.
- Lighting: RGB LED lighting with status indication.
- Dimensions W x H x D: 360 × 370 × 490 mm.
- Weight: 25 kg.
- Motor speed: 60 000 rpm.
- Motor power: 800 W.
