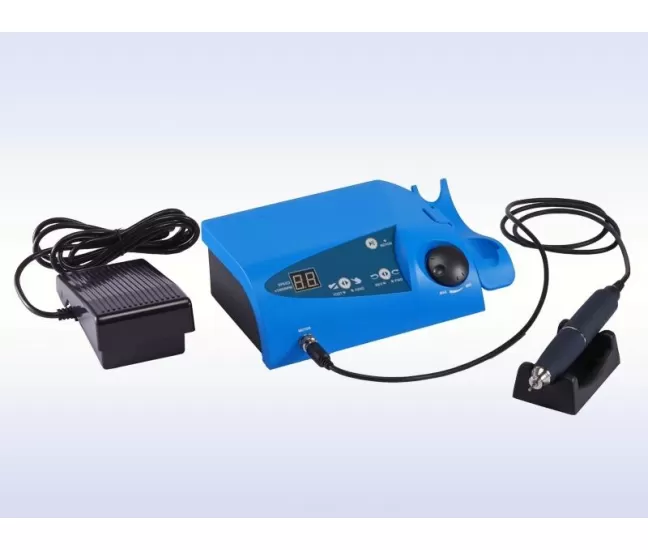

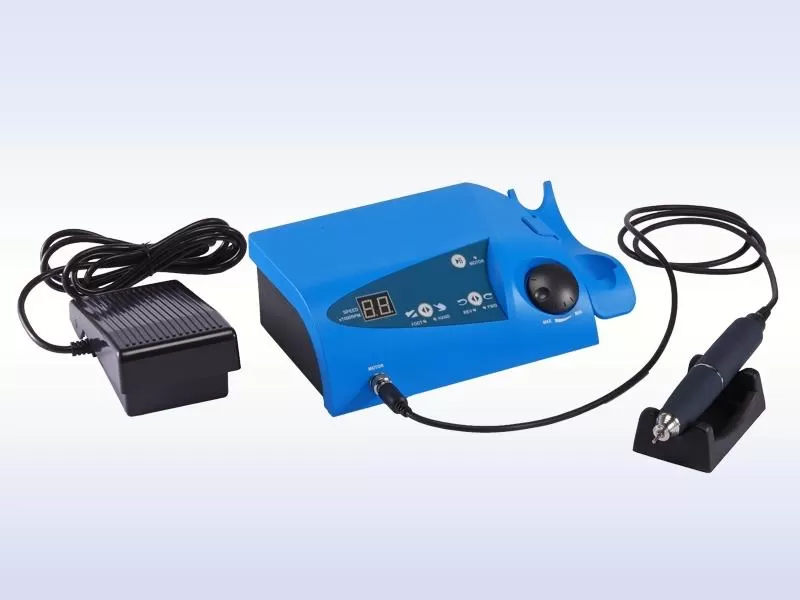

Micromotor with pedal
489.00€
Product Code: 14133
Manufacturer: SONG YOUNG INTERNATIONAL. CO
Country: Taiwan
Description
Brushless DC motor design, no electric spark, maintenance-free and long life.High quality bearings support heavy load applications.
Big torque and high efficiency, close loop speed control.
Max. speed is limited and adjustable.
Fast dynamic response (1.1s to start and 1.2s to stop) and imperceptible speed ripple.
Wide speed change range (0~50,000 rpm
Both linearity foot type pedal.
Manual speed change allowed in case of foot pedal lost.
Fault self-diagnosis.
Overheat protection; overload protection, over-current protection.
Technical data:
Power voltage: AC 230 V.
Control Box Size: 220(L) x 160(W) x 80(H) mm.
Control Box Weight: 2,3 kg.
Handpiece Size: 150(L) x 27(Ø) mm.
Handpiece Weight: 353 g.
Max. Output Power: 150 W.
Max. Torque: 9,8 Ncm.
Rotation Direction Settable.
Package: 1 x Controller; 1 x Motor handpiece; 1 x Foot pedal.
