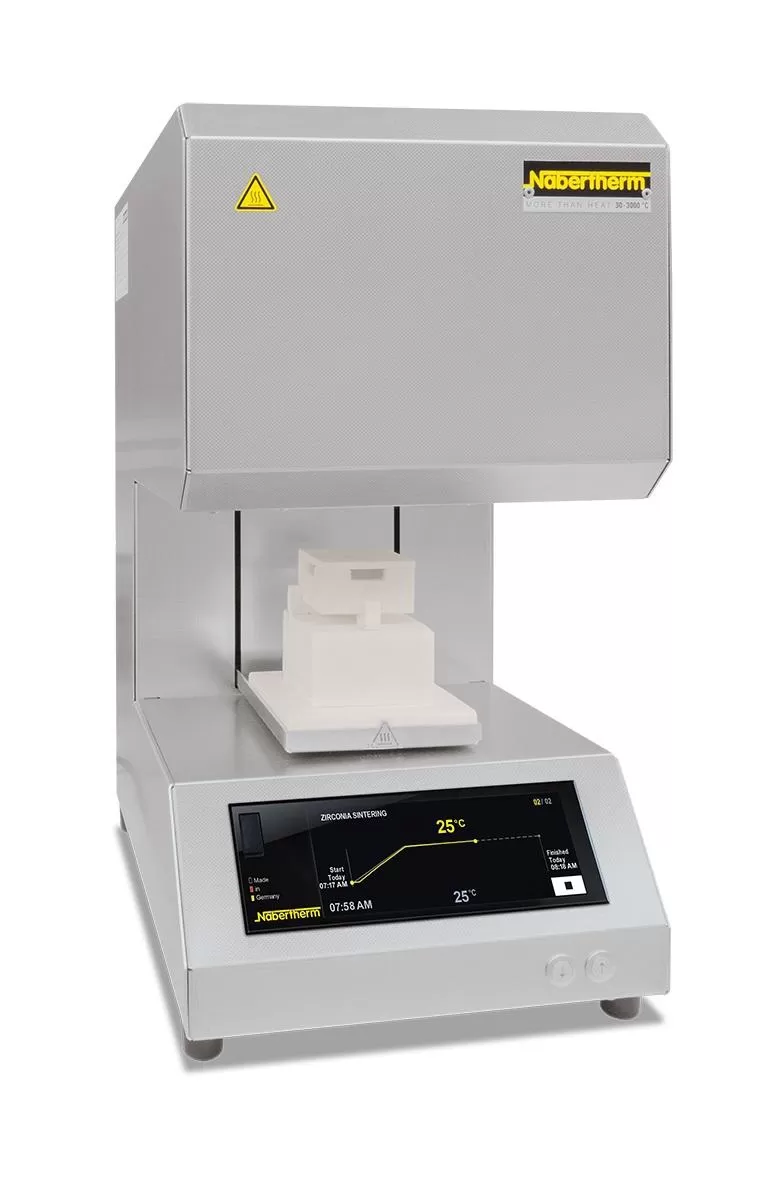

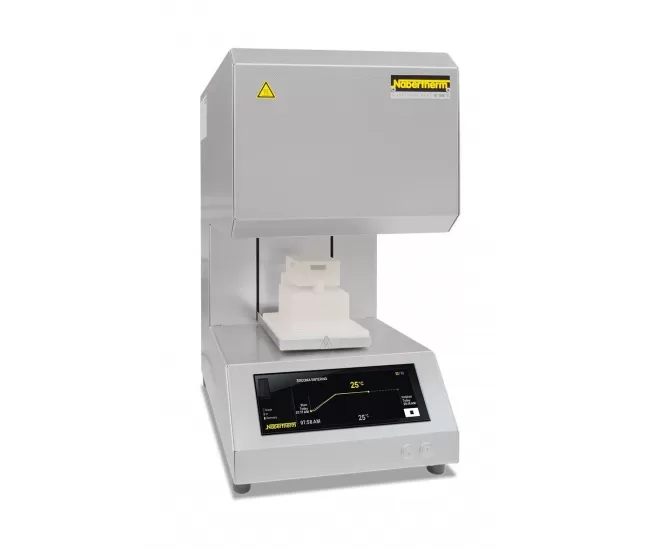

Zirconium oxide furnace LHT 01/16 Turbo Fire

Description

The high-temperature speed sintering furnace LHT 01/16 Turbo Fire was developed for the speed sintering of 1 - 3 single crowns made of translucent zirconium oxide up to a maximum temperature of 1600 °C. The entire sintering process can be completed within one hour. The allround heating of the furnace chamber with six heating elements made of molybdenum disilicide ensures a very good temperature uniformity and fast heating times can be achieved.

The high-temperature speed sintering furnace LHT 01/16 Turbo Fire sinters up to 3 single crowns within one hour. It can be programmed for all common temperature curves for speed sintering translucent zirconium oxide.

The colored, high-contrast 6.8 inch touch display enables convenient program input on the large screen. Programs can be displayed graphically and in tabular form. With the free MyNabertherm App, the furnace can be conveniently monitored online via mobile devices as a powerful addition to the Nabertherm controller. The process progress can be tracked, push notifications provide information about malfunctions.

Features:
- Maximum temperature: 1600°C.
- Six high-quality heating elements made of molybdenum disilicide offer very good protection against chemical interaction between charge and heating elements.
- Very good temperature uniformity due to allround heating of the furnace chamber.
- Usable for speed sintering blanks of all leading manufacturers.
- Precise temperature control, also in the lower temperature range for drying.
- Controller with touch operation P580 (50 programs with each 40 segments), 2 preset sample programs.

Technical data:
- Work space dimensions: W 65 x D 65 x H 35 mm.
- Charging area dimensions: W 85 x D 85 mm.
- Outer dimensions: W 295 x D 405 x H 565 mm.
- Connected load: 2.9 kW.
- Weight: 25 kg.
- Heating time: 20 min.
